Holley 554-166 I/O Expansion Holley EFI and Terminator X

0 review Write a Review

This adds AWESOME functionality to your Holley HP, Dominator, or Terminator X EFI system.The Holley EFI CAN Input/Output Module can be added to Holley EFI HP, D…

SKU: 554-166

UPC: 090127104101

Shipping: Calculated at Checkout

MSRP: $499.95

$399.95

$443.95

(You save: $100.00 )

Hurry up! Current stock:

Quantity:

5 customers are viewing this product

Product Details

Product Details

This adds AWESOME functionality to your Holley HP, Dominator, or Terminator X EFI system.

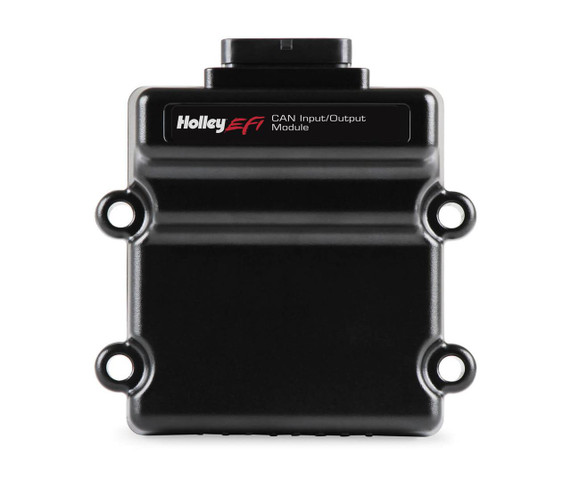

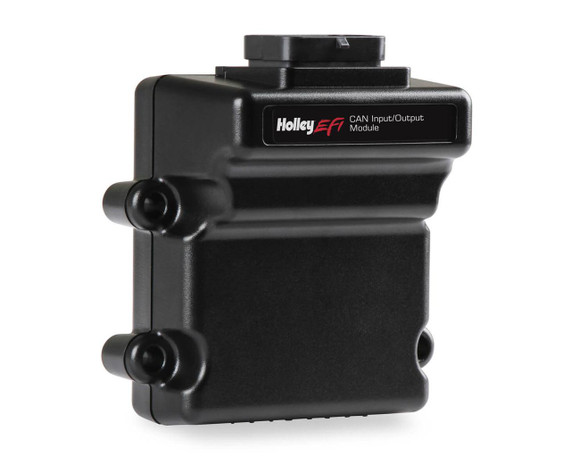

The Holley EFI CAN Input/Output Module can be added to Holley EFI HP, Dominator, Terminator X and Terminator X Max EFI installation. This CAN module will add eight inputs and eight outputs to the system, which can be used to control additional accessories, or provide critical sensor inputs. This module is perfect for anyone wanting to enhance the capabilities of their current ECU, yet have already tapped out their ECU's Input/Output channels.

Features:

Quickly expand your HP/Terminator X or even Dominator ECU’s Input / Output control with 8 additional inputs and outputs
This module is perfect for anyone wanting their Holley EFI ECU to control more functions or monitor more data channels
HP and Terminator X EFI installations with only 4 inputs and 4 outputs can now add more functionality to their EFI system!.
Inputs can be used for things such as:
-Switch 12v Toggle Switches - can be configured for external mechanical relays, or setup as digital switches via a Holley EFI dash
- Ground input for brake pedal switch
-5v analog inputs for sensors like fuel pressure, oil pressure, or nitrous bottle pressure
-Thermistor inputs for Coolant temperature sensors
Outputs can be used for things such as:
-Switch Low (Ground) – For relay control or activation
-Switch Low PWM (Ground) – -Switch Low PWM (Ground) – PWM Fan control – PWM Fuel Pump control - or other PWM- controlled devices.
Adjustable broadcast rate for each channel - from 0-100hz.

HP/Dominator Requires V6 Software version Build 200 and higher. Terminator X requires V2 Software Build 51 and higher. Supports user configured inputs and outputs from the Inputs/Outputs Individual Configuration File. Inputs and outputs from other ICF's (such as the boost/nitrous, or timing ICF) need to be mapped to pins on the ECU.
