Circle Track version of the MSD 6014 box. Plug and Play tune for the GM CT525 crate engine! Dedicated port for Track Officials. Fully tuneable with a laptop!
We see fantastic performance out of the 6014 series control boxes and LS Swaps on our in-house chassis dyno! In our LS Swap mustang with an LS1 long block, Polluter camshaft, Holley 300-132 intake manifold, Quickfuel 750, and the MSD control box we made 394 rear wheel horsepower (see pics). Way simpler than an EFI swap and more affordable as well.
With our 6.0 powered 1978 Malibu Wagon with LS3 heads, 850 Carburetor, Victor Jr intake, and BTR Stage IV Camshaft we made over 500 hp to the tires!
Both of these combinations are putting that kind of power down through TH400 transmissions 9" rear ends!
Works with 58x and 24x reluctor wheels! This box includes the required wire harnesses from the box to your coil brackets!
New features of the LS Ignition include; high speed data acquisition, an optional coolant temperature sensor input, idle timing control, as well as individual cylinder timing. These features are in addition to the existing 12V activated timing retard, programmable step retard, launch retard and RPM rev-limiters from its predecessor.

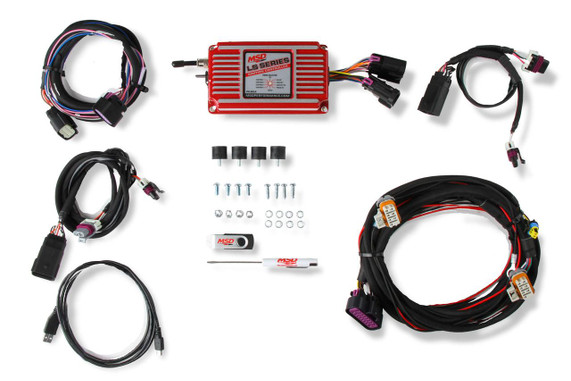

Everything you need, with easy installation, included harness plugs right into the factory connections.
As the popularity of GM LS engines continue to grow, so does the demand for a powerful, reliable and easily adaptable ignition system. MSD has answered this demand with an updated and improved version of the popular 6LS box. Whether using a stock crate engine or building a custom powerhouse, the MSD LS Ignition provides the control you need to achieve the performance you want. Dial in the perfect tune for your LS using the easily adjustable preset timing curves or hookup to your computer and program a custom setup with our user friendly MSD View software.
Features:
- Direct plug-in to factory GM LS sensors and coils
- Preprogrammed to run the GM CT525 crate engine out of the box
- Laptop programmable RPM limit, timing curve and coil selection for custom tuning
- Auto detects coils, cam sensor and crank sensor
- Will run 24x 1x, 58x 1x and 58x 4x crank / cam sensor combinations
- Self-powered with USB for laptop programming
- Steady, accurate timing control
- Dedicated plug for Tech Official
